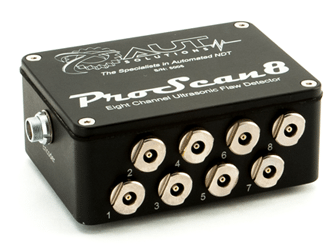

PROSCAN8

Smallest and most powerful eight-channel UT Flaw Detector system with 2 axis encoding

The Proscan8 takes all the features and benefits of the single channel ProScanXT but now gives you 8 channels. The ProScan8 is a small and low cost device that allows you to collect up to 8 channels of data simultaneously which can increase production and allows you to view data in ways never achieved by other methods such as phased array or TOFD.

FEATURES

All features from ProScanXT but now with 8 channels
Data merging and stitching
Real time multi-channel fixed angle acquisition

INCLUDES

ProScan8 flaw detector
Software, Windows OS compatible (32 or 64bit)
USB cable, Lemo to BNC adapters
Shipping case

ACQUISITION

Sampling rate: 25/50/100 MHz
Transducer mode: Single (pulse echo)/Dual (pitch-catch-through transmission). PRF: 6 Hz – 2 KHz

ANALYSIS

Statistics, finds min. thickness with one mouse click
Data exports to Excel with scan increment control
Screen capture
Image smoothing and hide NRI features

PROCESSING

- Rectifier: Full, +half, -half, RF, & Envelope
- Filters: 2.5/5/10 MHz; Broadband
- Resolution: 12 bit live A-scan, 8 bit for stored data
- Screen linearity: ±5%
- Linearity: ±1 dB on total gain dynamic
- Encoder: 5 v TTL (15 pin Sub-D), 100mA
