PROSCAN LT

Affordable Single-Channel Ultrasonic Flaw Detector For A and B-Scans

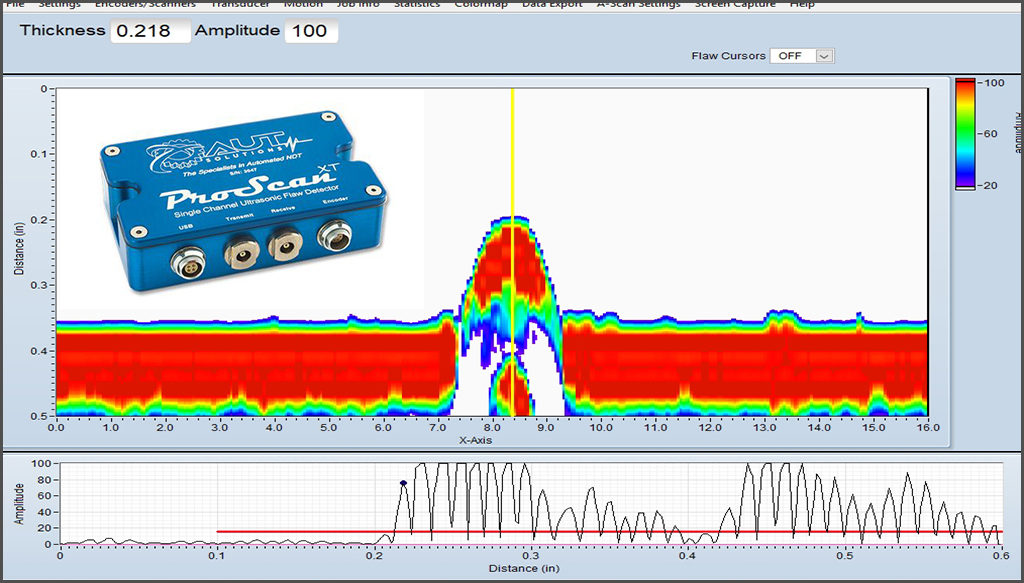

The ProScan LT is a simplified version of our Proscan XT UT Flaw Detector. It’s a USB-powered single-channel high-speed acquisition system with advanced ultrasonic tooling and visualizations. The ProScan delivers high-end performance while remaining user-friendly and cost effective. The software includes A-scan and B-scan, Time of Flight Diffraction (TOFD) for weld inspection, and Short Range Guided Wave (SRGW). ProScanLT is easily upgradeable to the ProScan XT which adds C-Scan, 3D & 4D displays, Corrosion Mapping, Full Project Stitching and HIC Inspection graphs.

FEATURES

A-scan, B-scan (Upgradeable to C-scan, 3D & 4D displays)
Performs TOFD, & SRGW (Upgradeable to Corrosion Mapping)
Works with either automated or manual scanners
DAC Implementation
TOFD – Tools, Lateral Wave Straightening
Reporting – Data Export with Grid Control
Statistics – Find minimum thickness fast
Data Skewing for angle beam transducers

INCLUDES

ProScan flaw detector
Software, Windows OS compatible (32 or 64bit)
USB cable, Lemo to BNC adapters
Shipping case

ACQUISITION

Sampling rate: 25/50/100 MHz
Transducer mode: Single (pulse echo)/Dual (pitch-catch-through transmission). PRF: 6 Hz – 2 KHz

ANALYSIS

Statistics, finds min. thickness with one mouse click
Data exports to Excel with scan increment control
Screen capture
Image smoothing and hide NRI features

PROCESSING

- Rectifier: Full, +half, -half, RF, & Envelope
- Filters: 2.5/5/10 MHz; Broadband
- Resolution: 12 bit live A-scan, 8 bit for stored data
- Screen linearity: ±5%
- Linearity: ±1 dB on total gain dynamic
- Encoder: 5 v TTL (15 pin Sub-D), 100mA
