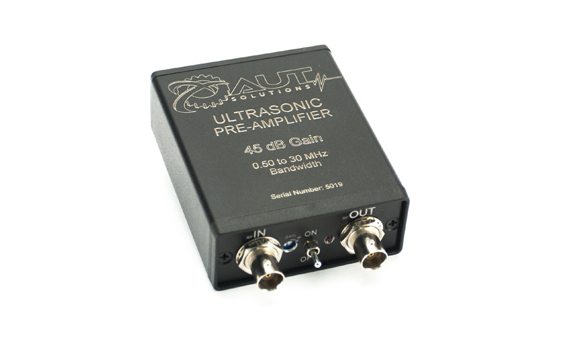

45DB VARIABLE ULTRASONIC NDT PREAMPLIFIER

Small, inexpensive, light weight, ultrasonic pre amplifier

• Power: – 9VDC
• Consumption: 30mA
• Gain (Variable): 0 to 45dB
• Input voltage: 0.50V p-p
• Output voltage: to 1Vpk-pk
• Bandwidth: 500KHz to 30MHz
• Temperature range: -40°C to 60°C
• Connectors: BNC Female
• Battery Powered
• Size: 3.75” x 2.75” x 1.25”
